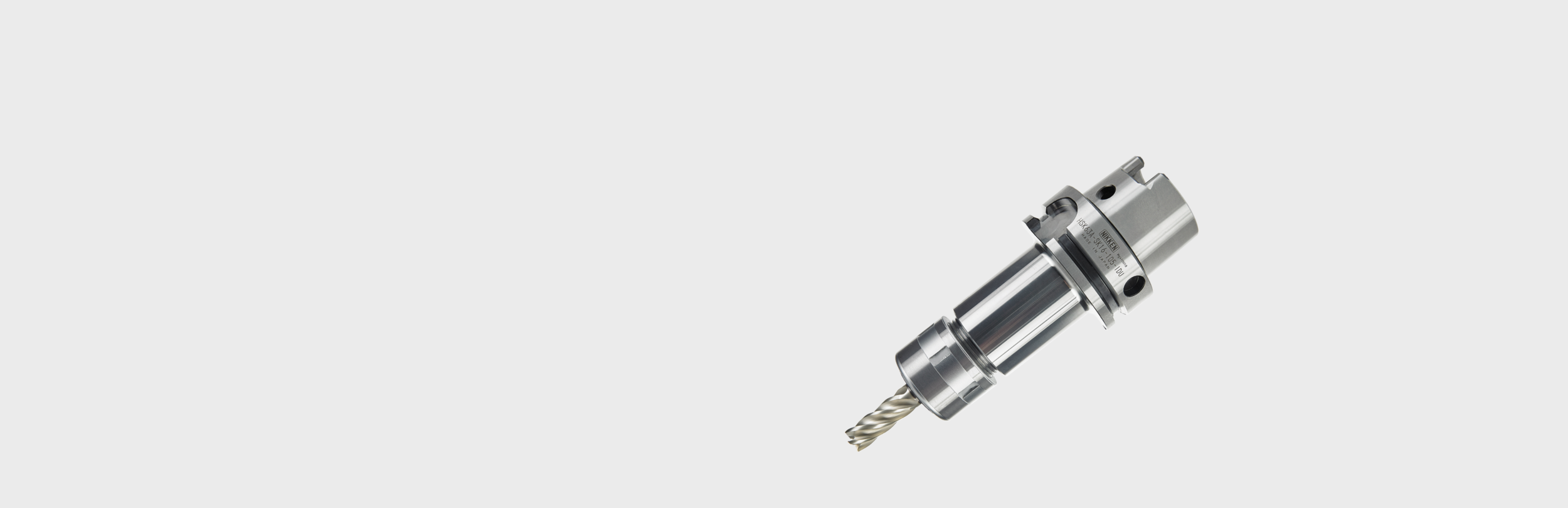

The NIKKEN Slim Chuck is our standard and precise collet chuck solution.

The Slim Chuck incorporates NIKKEN’s exclusive TiN (Titanium Nitrided) Bearing Nut technology. This allows for improved tightening and accuracy thus delivering better all-round performance.

The Slim Chuck is available to suit all processes with numerous shank sizes, lengths and configurations available. The Slim chuck body shape is available in two configurations: Standard parallel SK and externally tapered SKT. These two forms allow versatility to suit most applications and requirements.

Discover more about the Slim Chuck here >

  • Run-Out guarantee 5µm at 4 x Diameter (3µm with precision collets)

  • TiN Bearing Nut

  • 8º Collet System

  • Square Shoulder Pushing

  • High speed options available up to 40,000rpm @ G2.5

  • Jet Coolant options available

Slim Chuck Overview

(PDF - 1.1 MB)

Here's a list of our fast moving stock available to be delivered the next working day. Every week, we receive shipments from our factory in Japan therefore, if you can't find what you're looking for then please do not hesitate to contact us for an estimated delivery date.


Part Number Code Shank LENGTH 'L' Capacity 'D' Enquire
BT40-SK25-90
Less than 10 in stock!		 BT40 SK25 90 7.500 - 25.40 Enquire
BT40-SK6-120 BT40 SK6 120 0.700 - 6.000 Enquire
BT40-SK6-150 BT40 SK6 150 0.700 - 6.000 Enquire
BT40-SK6-60 BT40 SK6 60 0.700 - 6.000 Enquire
BT40-SK6-90 BT40 SK6 90 0.700 - 6.000 Enquire
BT50-SK10-165 BT50 SK10 165 1.750 - 10.00 Enquire
BT50-SK10-105
Less than 10 in stock!		 BT50 SK10 105 1.750 - 10.00 Enquire
BT50-SK10-135
Less than 10 in stock!		 BT50 SK10 135 1.750 - 10.00 Enquire
HSK63A-MDSK10-105P
Less than 10 in stock!		 HSK63A MDSK10 105P 1.750 - 10.00 Enquire
HSK63A-SK10C-105 HSK63A SK10C 105 1.750 - 10.00 Enquire
HSK63A-SK10C-120 HSK63A SK10C 120 1.750 - 10.00 Enquire
IT40X-SK16-60P
Less than 10 in stock!		 IT40X SK16 60P 2.750 - 16.00 Enquire
IT40X-SK16-90P
Less than 10 in stock!		 IT40X SK16 90P 2.750 - 16.00 Enquire
IT50-SK10-105 IT50 SK10 105 1.750 - 10.00 Enquire
IT50-SK10-135 IT50 SK10 135 1.750 - 10.00 Enquire
IT50-SK10-165 IT50 SK10 165 1.750 - 10.00 Enquire
IT50-SK16-105 IT50 SK16 105 2.750 - 16.00 Enquire
IT50-SK16-135
Less than 10 in stock!		 IT50 SK16 135 2.750 - 16.00 Enquire
IT50-SK16-165 IT50 SK16 165 2.750 - 16.00 Enquire
IT50-SK25-105 IT50 SK25 105 7.500 - 25.40 Enquire
IT50-SK25-165 IT50 SK25 165 7.500 - 25.40 Enquire
NBT40-MDSK10-90
Less than 10 in stock!		 NBT40 MDSK10 90 1.750 - 10.00 Enquire
NBT40-SK10C-90 NBT40 SK10C 90 1.750 - 10.00 Enquire
NBT40-MDSK16-90P
Less than 10 in stock!		 NBT40 MDSK16 90P 2.750 - 16.00 Enquire
NBT40-SK16C-60 NBT40 SK16C 60 2.750 - 16.00 Enquire
NBT40-MDSK20-90P
Less than 10 in stock!		 NBT40 MDSK20 90P 3.500 - 20.00 Enquire
BT30-SK10-120 BT30 SK10 120 1.750 - 10.00 Enquire
BT30-SK10-60P
Less than 10 in stock!		 BT30 SK10 60P 1.750 - 10.00 Enquire
BT30-SK10-90 BT30 SK10 90 1.750 - 10.00 Enquire
BT30-SK10-90P
Less than 10 in stock!		 BT30 SK10 90P 1.750 - 10.00 Enquire
BT30-SK16-60P BT30 SK16 60P 2.750 - 16.00 Enquire
BT50-SK16-105 BT50 SK16 105 2.750 - 16.00 Enquire
BT50-SK16-135 BT50 SK16 135 2.750 - 16.00 Enquire
BT50-SK16-165 BT50 SK16 165 2.750 - 16.00 Enquire
BT50-SK6-105
Less than 10 in stock!		 BT50 SK6 105 0.700 - 6.000 Enquire
C6-SK10-120 C6 SK10 120 1.750 - 10.00 Enquire
C6-SK10-60 C6 SK10 60 1.750 - 10.00 Enquire
C6-SK10-90 C6 SK10 90 1.750 - 10.00 Enquire
C6-SK6-90 C6 SK6 90 0.700 - 6.000 Enquire
C6-SK16-120
Less than 10 in stock!		 C6 SK16 120 2.750 - 16.00 Enquire
C6-SK16-90
Less than 10 in stock!		 C6 SK16 90 2.750 - 16.00 Enquire
HSK63A-SK16-105P HSK63A SK16 105P 2.750 - 16.00 Enquire
HSK63A-SK16-80 HSK63A SK16 80 2.750 - 16.00 Enquire
HSK63A-SK10-60P
Less than 10 in stock!		 HSK63A SK10 60P 1.750 - 10.00 Enquire
HSK63A-SK10C-105P HSK63A SK10C 105P 1.750 - 10.00 Enquire
HSK63A-SK10C-120P HSK63A SK10C 120P 1.750 - 10.00 Enquire
HSK63A-SK10C-150 HSK63A SK10C 150 1.750 - 10.00 Enquire
HSK63A-SK16-105 HSK63A SK16 105 2.750 - 16.00 Enquire
HSK63A-SK16-80P HSK63A SK16 80P 2.750 - 16.00 Enquire
HSK63A-SK16C-120 HSK63A SK16C 120 2.750 - 16.00 Enquire
HSK63A-SK20-90P HSK63A SK20 90P 3.500 - 20.00 Enquire
HSK63A-SK16C-120P HSK63A SK16C 120P 2.750 - 16.00 Enquire
HSK63A-SK6C-100 HSK63A SK6C 100 0.700 - 6.000 Enquire
HSK63A-SK6C-100P HSK63A SK6C 100P 0.700 - 6.000 Enquire
K20-SK6-120 K20 SK6 120 0.700 - 6.000 Enquire
K32-SK16-120 K32 SK16 120 2.750 - 16.00 Enquire
NBT40-SK16C-75P
Less than 10 in stock!		 NBT40 SK16C 75P 2.750 - 16.00 Enquire
NBT40-SK16C-90 NBT40 SK16C 90 2.750 - 16.00 Enquire
NBT40-SKT10C-120P
Less than 10 in stock!		 NBT40 SKT10C 120P 1.750 - 10.00 Enquire
NBT40-SKT6C-120P
Less than 10 in stock!		 NBT40 SKT6C 120P 0.700 - 6.000 Enquire
NBT40-SKT6C-90P
Less than 10 in stock!		 NBT40 SKT6C 90P 0.700 - 6.000 Enquire
NBT50-MDSK20-135
Less than 10 in stock!		 NBT50 MDSK20 135 3.500 - 20.00 Enquire
NBT50-SK16C-105 NBT50 SK16C 105 2.750 - 16.00 Enquire
BT30-SK16-60
Less than 10 in stock!		 BT30 SK16 60 2.750 - 16.00 Enquire
BT30-SK16-90 BT30 SK16 90 2.750 - 16.00 Enquire
BT30-SK6-90 BT30 SK6 90 0.700 - 6.000 Enquire
BT40-SK10-120 BT40 SK10 120 1.750 - 10.00 Enquire
BT40-SK10-150 BT40 SK10 150 1.750 - 10.00 Enquire
BT40-SK10-180 BT40 SK10 180 1.750 - 10.00 Enquire
BT40-SK10-60 BT40 SK10 60 1.750 - 10.00 Enquire
BT40-SK10-90 BT40 SK10 90 1.750 - 10.00 Enquire
HSK32E-SK10-60P HSK32E SK10 60P 1.750 - 10.00 Enquire
HSK32E-SK6-50P HSK32E SK6 50P 0.700 - 6.000 Enquire
HSK100A-MDSK25-140
Less than 10 in stock!		 HSK100A MDSK25 140 7.500 - 25.40 Enquire
HSK40A-SK6-60P HSK40A SK6 60P 0.700 - 6.000 Enquire
HSK63A-SK6C-120 HSK63A SK6C 120 0.700 - 6.000 Enquire
HSK63A-SK6C-120P HSK63A SK6C 120P 0.700 - 6.000 Enquire
HSK63A-SK6C-150
Less than 10 in stock!		 HSK63A SK6C 150 0.700 - 6.000 Enquire
IT40-SK10-120 IT40 SK10 120 1.750 - 10.00 Enquire
IT40-SK10-150 IT40 SK10 150 1.750 - 10.00 Enquire
IT40-SK10-90 IT40 SK10 90 1.750 - 10.00 Enquire
IT40-SK10-60
Less than 10 in stock!		 IT40 SK10 60 1.750 - 10.00 Enquire
K20-SK10-120
Less than 10 in stock!		 K20 SK10 120 1.750 - 10.00 Enquire
K20-SK6-100
Less than 10 in stock!		 K20 SK6 100 0.700 - 6.000 Enquire
K32-SK10-120
Less than 10 in stock!		 K32 SK10 120 1.750 - 10.00 Enquire
K32-SK10-150 K32 SK10 150 1.750 - 10.00 Enquire
K32-SK16-150
Less than 10 in stock!		 K32 SK16 150 2.750 - 16.00 Enquire
NBT30-SKT10C-90P NBT30 SKT10C 90P 1.750 - 10.00 Enquire
K32-SK16-210
Less than 10 in stock!		 K32 SK16 210 2.750 - 16.00 Enquire
K32-SK6-120
Less than 10 in stock!		 K32 SK6 120 0.700 - 6.000 Enquire
S25-SK10-250 S25 SK10 250 1.750 - 10.00 Enquire
S25-SK10-300 S25 SK10 300 1.750 - 10.00 Enquire
BT40-SK10-90P
Less than 10 in stock!		 BT40 SK10 90P 1.750 - 10.00 Enquire
BT40-SK16-120 BT40 SK16 120 2.750 - 16.00 Enquire
BT40-SK16-150 BT40 SK16 150 2.750 - 16.00 Enquire
BT40-SK16-180
Less than 10 in stock!		 BT40 SK16 180 2.750 - 16.00 Enquire
BT40-SK16-60 BT40 SK16 60 2.750 - 16.00 Enquire
BT40-SK16-90 BT40 SK16 90 2.750 - 16.00 Enquire
BT40-SK20-90 BT40 SK20 90 3.500 - 20.00 Enquire
BT40-SK20-60
Less than 10 in stock!		 BT40 SK20 60 3.500 - 20.00 Enquire
BT40-SK25-120
Less than 10 in stock!		 BT40 SK25 120 7.500 - 25.40 Enquire
BT40-SK25-75
Less than 10 in stock!		 BT40 SK25 75 7.500 - 25.40 Enquire
HSK40E-SK10-60P HSK40E SK10 60P 1.750 - 10.00 Enquire
HSK40E-SK6-60P HSK40E SK6 60P 0.700 - 6.000 Enquire
HSK50E-SK6C-80P HSK50E SK6C 80P 0.700 - 6.000 Enquire
IT40-SK16-120 IT40 SK16 120 2.750 - 16.00 Enquire
IT40-SK16-180
Less than 10 in stock!		 IT40 SK16 180 2.750 - 16.00 Enquire
IT40-SK16-60 IT40 SK16 60 2.750 - 16.00 Enquire
IT40-SK16-90 IT40 SK16 90 2.750 - 16.00 Enquire
IT40-SK6-120 IT40 SK6 120 0.700 - 6.000 Enquire
IT40-SK6-150 IT40 SK6 150 0.700 - 6.000 Enquire
IT40X-SK10-120P IT40X SK10 120P 1.750 - 10.00 Enquire
IT40X-SK10-90P IT40X SK10 90P 1.750 - 10.00 Enquire
NBT30-MDSK16-75P
Less than 10 in stock!		 NBT30 MDSK16 75P 2.750 - 16.00 Enquire
NBT30-SKT10C-60P
Less than 10 in stock!		 NBT30 SKT10C 60P 1.750 - 10.00 Enquire
NBT30-SKT16C-60P
Less than 10 in stock!		 NBT30 SKT16C 60P 2.750 - 16.00 Enquire
NBT30-SKT6C-90P NBT30 SKT6C 90P 0.700 - 6.000 Enquire
