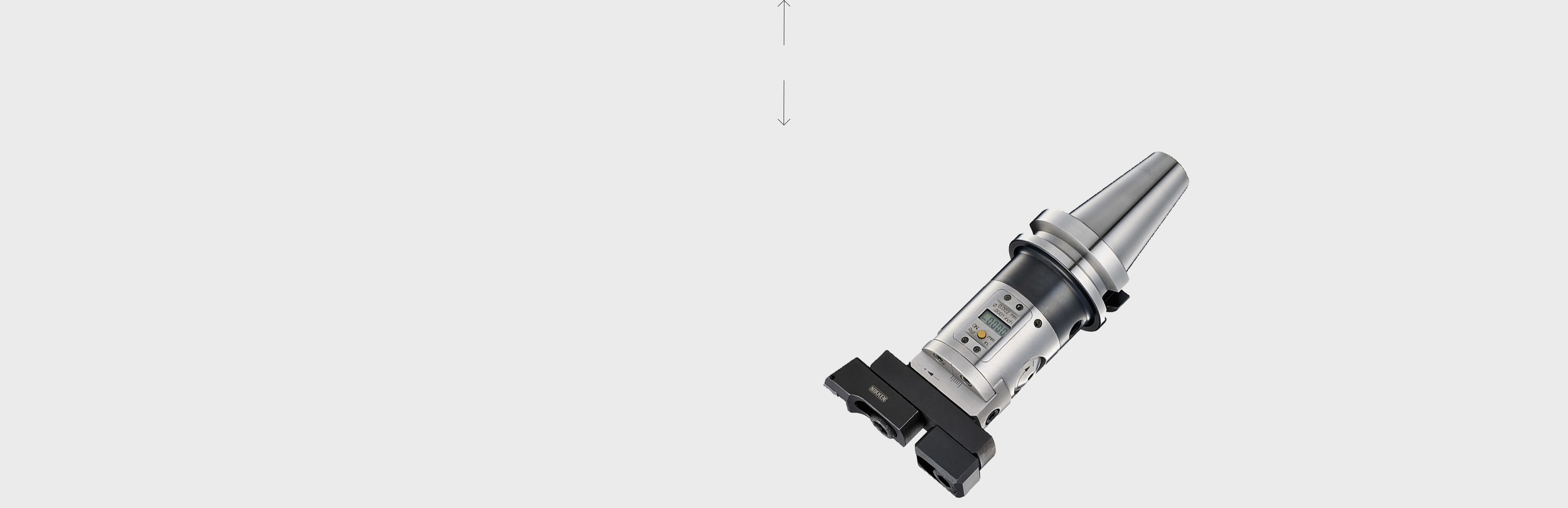

The NIKKEN eMAC Digital modular boring system is a fine boring head with a digital display precisely indicating the incremental movement of the radial slide traverse.

This means that, once the initial diameter is set and established, further target adjustments can be achieved easily, quickly and precisely either in the tool presetter or directly inside the machine tool spindle.

The NIKKEN eMAC Digital Boring Solution is relatively straight forward to use and features a single button providing three operations for 'On' & 'Reset', and to change between mm/inch.

eMAC utilises a modular blade system which can accept either boring bits or a range of boring blades to provide optimum versatility and also quite an impressive range from only two sizes of boring head.

The system caters for a centre through coolant supply as standard (up to 4 MPa) with the output either being directly to the end of the boring bit or, via a nozzle, on the body should blades be used.

Being IP67 waterproof rated the system is more than suitable for demanding machine environments where coolant is present.

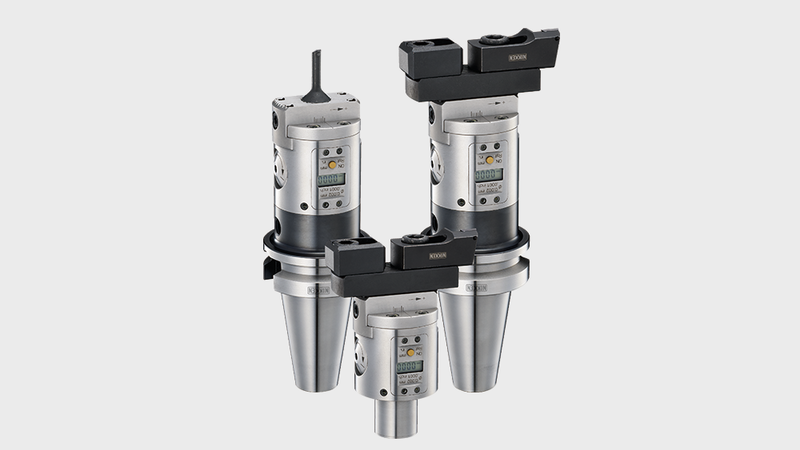

eMAC modular boring is available in two sizes:

  • eMAC - Boring range, depending on bit/blade selected, 6.0mm to 110mm.
  • eMAC-W (coming soon) - Boring range, depending on bit/blade selected, 6.0mm to 200.0mm.
  • Digital display resolution Ø2µm

  • Through coolant as standard

  • IP67 protection (IP68 coming soon)

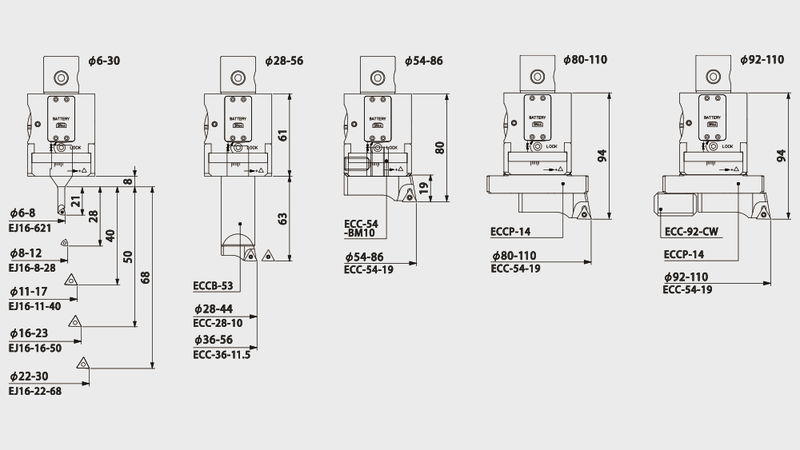

eMAC Technical Diagram
eMAC Boxset

Boring Brochure

(PDF - 70.4 MB)

Shank BORING ARBOR SPACER/PLATE HEAD/CARTRIDGE/BIT DIA 'D' MIN DIA 'D' MAX BORING DEPTH 'H' INSERT APPLICATION
BT40-Q26-50 + ECCB-53 + Q26-EMAC6110-61 + ECC-28-10 BT40 BT40-Q26-50 ECCB-53 Q26-EMAC6110-61 + ECC-28-10 28.0 44.0 63.0 EM09 Finish
BT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-16-60 BT40 BT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-16-60 16.0 23.0 50.0 EM09 Finish
BT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-22-68 BT40 BT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-22-68 22.0 30.0 68.0 EM09 Finish
BT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-6-21 BT40 BT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-6-21 6.0 8.0 21.0 EM02 Finish
BT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-8-28 BT40 BT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-8-28 8.0 12.0 28.0 EM02 Finish
BT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-8-40 BT40 BT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-8-40 11.0 17.0 40.0 EM02 Finish
BT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-6-21 BT50 BT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-6-21 6.0 8.0 21.0 EM02 Finish
BT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-8-28 BT50 BT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-8-28 8.0 12.0 28.0 EM02 Finish
BT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-8-40 BT50 BT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-8-40 11.0 17.0 40.0 EM02 Finish
HSK100A-Q26-170N + ECC-54-BM10 + Q26-EMAC6110-61 + ECC-54-19 HSK100A HSK100A-Q26-170N ECC-54-BM10 Q26-EMAC6110-61 + ECC-54-19 54.0 86.0 80.0 EM11 Finish
HSK100A-Q26-170N + ECCP-14 + ECC-92-CW + Q26-EMAC6110-61 + ECC-54-19 HSK100A HSK100A-Q26-170N ECCP-14 + ECC-92-CW Q26-EMAC6110-61 + ECC-54-19 92.0 110.0 94.0 EM11 Finish
HSK100A-Q26-170N + ECCP-14 + Q26-EMAC6110-61 + ECC-54-19 HSK100A HSK100A-Q26-170N ECCP-14 Q26-EMAC6110-61 + ECC-54-19 80.0 100.0 94.0 EM11 Finish
HSK63A-Q26-95 + ECCB-53 + Q26-EMAC6110-61 + ECC-28-10 HSK63A HSK63A-Q26-95 ECCB-53 Q26-EMAC6110-61 + ECC-28-10 28.0 44.0 63.0 EM09 Finish
HSK63A-Q26-95 + ~ + Q26-EMAC6110-61 + EJ16-16-60 HSK63A HSK63A-Q26-95 ~ Q26-EMAC6110-61 + EJ16-16-60 16.0 23.0 50.0 EM09 Finish
HSK63A-Q26-95 + ~ + Q26-EMAC6110-61 + EJ16-22-68 HSK63A HSK63A-Q26-95 ~ Q26-EMAC6110-61 + EJ16-22-68 22.0 30.0 68.0 EM09 Finish
IT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-6-21 IT40 IT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-6-21 6.0 8.0 21.0 EM02 Finish
IT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-8-28 IT40 IT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-8-28 8.0 12.0 28.0 EM02 Finish
IT40-Q26-50 + ~ + Q26-EMAC6110-61 + EJ16-8-40 IT40 IT40-Q26-50 ~ Q26-EMAC6110-61 + EJ16-8-40 11.0 17.0 40.0 EM02 Finish
IT50-Q26-170N + ECC-54-BM10 + Q26-EMAC6110-61 + ECC-54-19 IT50 IT50-Q26-170N ECC-54-BM10 Q26-EMAC6110-61 + ECC-54-19 54.0 86.0 80.0 EM11 Finish
IT50-Q26-170N + ECCB-53 + Q26-EMAC6110-61 + ECC-36-11.5 IT50 IT50-Q26-170N ECCB-53 Q26-EMAC6110-61 + ECC-36-11.5 36.0 56.0 63.0 EM09 Finish
IT50-Q26-170N + ECCP-14 + Q26-EMAC6110-61 + ECC-54-19 IT50 IT50-Q26-170N ECCP-14 Q26-EMAC6110-61 + ECC-54-19 80.0 100.0 94.0 EM11 Finish
MBT40-Q26-95 + ~ + Q26-EMAC6110-61 + EJ16-16-60 MBT40 MBT40-Q26-95 ~ Q26-EMAC6110-61 + EJ16-16-60 16.0 23.0 50.0 EM09 Finish
MBT40-Q26-95 + ~ + Q26-EMAC6110-61 + EJ16-22-68 MBT40 MBT40-Q26-95 ~ Q26-EMAC6110-61 + EJ16-22-68 22.0 30.0 68.0 EM09 Finish
MBT40-Q26-95 + ~ + Q26-EMAC6110-61 + EJ16-8-40 MBT40 MBT40-Q26-95 ~ Q26-EMAC6110-61 + EJ16-8-40 11.0 17.0 40.0 EM02 Finish
MBT50-Q26-65 + ECC-54-BM10 + Q26-EMAC6110-61 + ECC-54-19 MBT50 MBT50-Q26-65 ECC-54-BM10 Q26-EMAC6110-61 + ECC-54-19 54.0 86.0 80.0 EM11 Finish
MBT50-Q26-65 + ECCP-14 + ECC-92-CW + Q26-EMAC6110-61 + ECC-54-19 MBT50 MBT50-Q26-65 ECCP-14 + ECC-92-CW Q26-EMAC6110-61 + ECC-54-19 92.0 110.0 94.0 EM11 Finish
MBT50-Q26-65 + ECCP-14 + Q26-EMAC6110-61 + ECC-54-19 MBT50 MBT50-Q26-65 ECCP-14 Q26-EMAC6110-61 + ECC-54-19 80.0 100.0 94.0 EM11 Finish
NBT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-6-21 NBT50 NBT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-6-21 6.0 8.0 21.0 EM02 Finish
NBT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-8-28 NBT50 NBT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-8-28 8.0 12.0 28.0 EM02 Finish
NBT50-Q26-65 + ~ + Q26-EMAC6110-61 + EJ16-8-40 NBT50 NBT50-Q26-65 ~ Q26-EMAC6110-61 + EJ16-8-40 11.0 17.0 40.0 EM02 Finish
