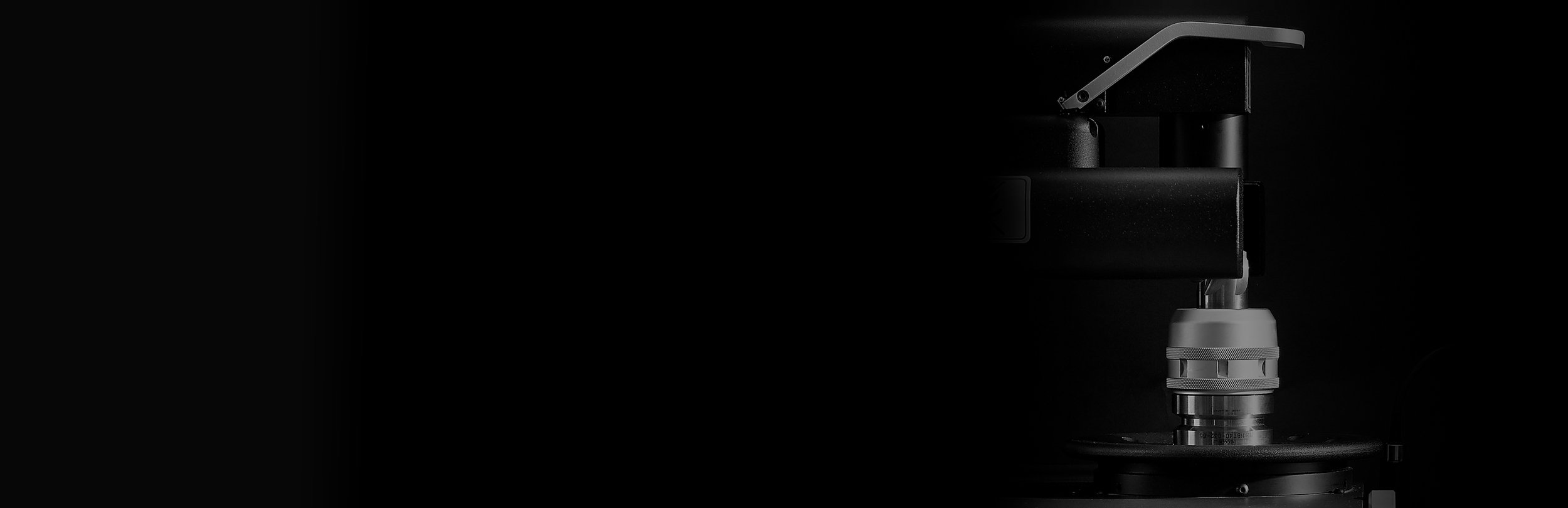

E346+ Tool Presetter

The E346B series presetters are of course the ideal solution to use in the toolroom: solid, precise and above all easy to use.

The use of natural granite as a key construction element allows our tool presetters to have a high degree of dimensional stability, guaranteeing accuracy and repeatability of measurements. When granite makes the difference!

All spindle holders are interchangeable (ISO/BT/HSK/polygonal taper...etc): by negating the use of adapters, the coupling error is drastically reduced, making measurement more accurate.

The new optical scales model AS371 provide high performance and accuracy. The development of this essential component is based on forty years of experience in the field of mechanical measurement. Trust the experts!

The E346B is equipped with a vertically positioned 15.6" capacitive touch screen monitor for better display of both data and measurement functions. Our monitor combines robustness and precision, offering optimal visuals.

The new user interface was designed with a clear objective: to make the operator experience as simple and intuitive as possible.

The evolution of our software increases the connections between operators, tools and machines in the smart factory. This translates into a real increase in quality and performance.

Why not choose the best? Trust the experts!

TECHNICAL DATA

GENERAL FEATURES

• Measuring range: max diameter 360 mm (radius 180 mm); max height 460 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Steel base with 3 fixed and 1 adjustable feet
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Manual gross movement
• Manual fine adjustment
• ECN AS371 certified optical scales (resolution 1µm)
• Vertical TFT 15,6" Touch Screen Monitor
• Overall dimensions: L = 958 mm, H = 974 mm, D = 441 mm
• Net weight: ~ 105 kg

SPINDLE FEATURES

• Interchangeable spindle (ISO,BT,CAT, HSK, Polygonal taper, etc.)
• Manual spindle brake
• Manual tool holder clamping (HSK, Polygonal taper)

CAMERA SYSTEM FEATURES

• Bi-telecentric optical lenses
• Elbo Controlli NIKKEN camera system measuring range (mm) = 7,6 x 7,2 mm
• Monochromatic C-MOS sensor USB 3.0 Super speed connection
• Elbo Controlli NIKKEN camera system resolution = 1 µm
• Elbo Controlli NIKKEN camera system magnification = 25x
• Analogic and digital camera view
• Digital zoom = 4x
• Tool inspection function
• Resizeable camera area

SOFTWARE AND MEASURING FUNCTIONS

• Embedded ECN operating system Linux based
• ECN machine software B version (blue screen)
• Number of machine origins / number of tool sets = ∞ / ∞
• Multi-origin function for multitasking machines
• Manual measure function with fixed reticle
• Autotargeting measure function
• Autotargeting measure function with dimension freeze
• Collimation indicators for fixed reticle measure
• On-screen automatic measure of tool corner radius & theoretical centre point
• On-screen automatic measure of tool corner angle & theoretical intersection
• Chamfer measuring function
• Adjustable Area of Interest (AOI)
• Software for manual tool presetting and geometry check

GRAPHIC FUNCTIONS

• Adjustable reticles (axis and circles)
• Profile image capture function
• Automatic geometry (1 geometric entity)
• Geometry by points
• Camera image capture
• DXF files import of the tool profile

CONNECTION AND INTEGRATION FUNCTIONS

• USB ports (4)
• LAN connection
• Standard post processor
