Achieving unmatched high precision and durability the CNC1003 standard Rotary Table is the ideal solution for deep cutting highly rigid material and even dividing and lead cutting for large-size workpieces.
With a large through-hole and powerful clamp system, the CNC1003 maintains high precision and performance even after long term use, offering high strength and rigidity.
![](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBazBGIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--33ce37280494e29a240e61773d4423ee99ed4a2a/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC1003.jpeg)

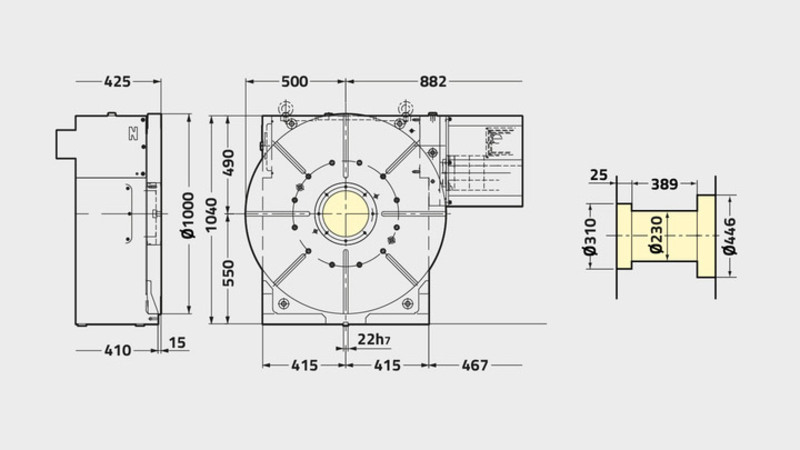

![](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBdm9GIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--f2fc826c7f3948e65ac6c18db4df87d3cde07b46/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC(Z)1003-.jpg)
NIKKEN ROTARY TABLE CATALOGUE – 2019
(PDF - 62.5 MB)
CNC1003 | |
---|---|
Face Plate Diameter[Ømm] | 1000 |
Table Range/Type | EXTRA LARGE |
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) | RIGHT |
Diameter of Spindle Hole [Ømm H7] | 230 |
Number of Spindles x Pitch [mm] | 1 |
Centre Height [mm] | 550 |
Width of T-Slot [mm] | 22 (Optional) |
Clamping System | HYD |
Clamping Torque [Nm] | 7000 |
Table Inertia at Motor Shaft [Kg m2 x 103] | 6.3 |
Servo Motor [min1] | αiF30·2000 |
Min. Increment [Degrees] | 0.001 |
Rotation Speed [min1] | 5.5 |
Total Reduction Ratio | 1/360 |
Indexing Accuracy [sec] | 15 |
Indexing Accuracy Ultra Precision [sec] | N/A |
Net Weight [Kg] | 2210 |
Max. Vertical Work Load on Table [Kg] | 2000 |
Max. Horizontal Work Load on Table [Kg] | 4000 |
Max. Horizontal Thrust Load on the Table [N] | 281250 |
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] | 20067 |
Max. Thrust Load on the Table [FxL Nm] | 42190 |
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] | 300 |
Max. Work Inertia [Kg m2] | 234 |
Driving Torque [Nm] | 3168 |
