The NIKKEN NCT200 is the compact rotary table to beat. Offering an exceptional clamping torque of 900Nm and 25% increase in rigidity, the NCT200 is the ultimate compact rotary table without the premium expense.

The NCT200 allows you to reduce operator intervention, finish components in significantly fewer operations and maximise machine capacity to ultimately enhance productivity and quickly see the return on investment.

The difference between the NCT200 and NCT200E is the NCT200 comes with a faceplate whereas the NCT200E comes without.

The NCTZ200E comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

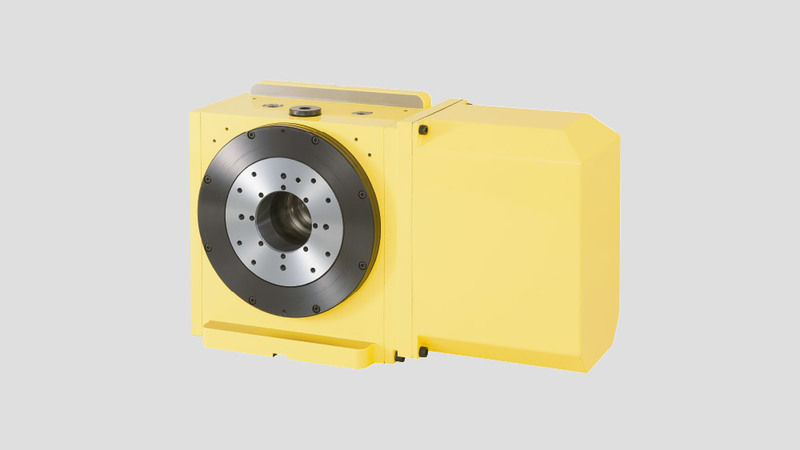

NCT(Z)200E Rotary Table

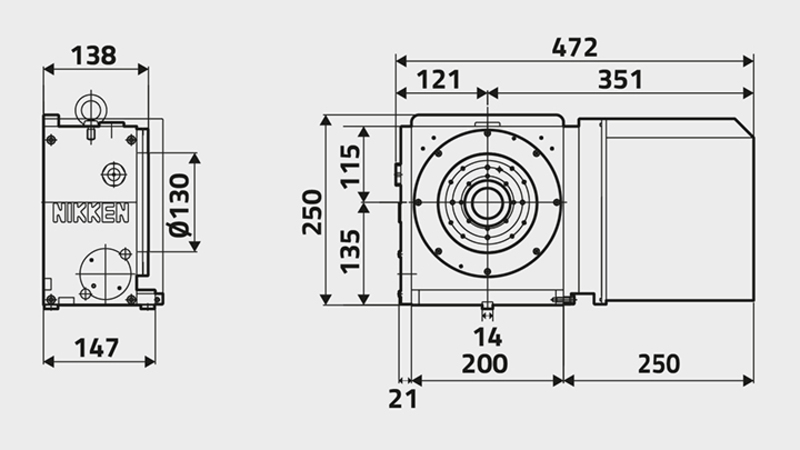

NCT(Z)200E Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

NCT(Z)200E
Face Plate Diameter[Ømm] 130
Table Range/Type COMPACT
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 135
Width of T-Slot [mm] N/A
Clamping System AIR
Clamping Torque [Nm] 900
Table Inertia at Motor Shaft [Kg m2 x 103] 0.1
Servo Motor [min1] αiF4·3000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 33.3 (66.6)
Total Reduction Ratio 1/90 (1/45)
Indexing Accuracy [sec] ±20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 65
Max. Vertical Work Load on Table [Kg] 100
Max. Horizontal Work Load on Table [Kg] 200
Max. Horizontal Thrust Load on the Table [N] 18000
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 677
Max. Thrust Load on the Table [FxL Nm] 690
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 60 (30)
Max. Work Inertia [Kg m2] 1.1 (0.5)
Driving Torque [Nm] 151 (121)
