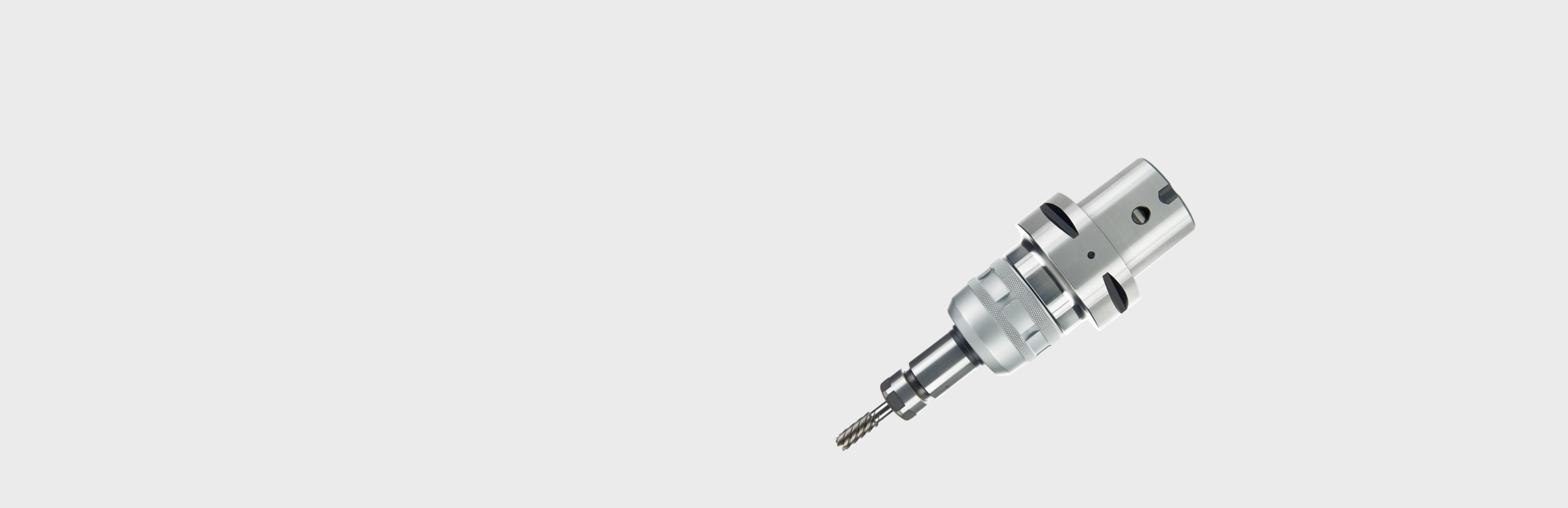

NIKKEN's Multi-Lock is the ultimate ‘mechanical roller chuck’!

Designed to provide ultimate precision, grip and retention of any cutting tool, NIKKEN's Multi-Lock is our power milling solution, used to meet the requirements and demands of today's processes, materials and applications.

The construction consists of two parts – a single piece special heat and 'sub-zero' treated main body and spindle shank connection, with a precise slotted bore, which becomes one with a separately manufactured external nose ring assembly.

Discover more about the construction of the Multi-Lock Milling Chuck here >

  • Run-Out guarantee 5µm at 3 x Diameter

  • Superior and market leading clamping torque whatever size (e.g. C20 = 980N/m)

  • Long term reliability, rigidity & durability

  • Clamping at both nose & root - no weak spots

  • High speed options available up to 40,000rpm @ G2.5

  • NIKKEN's Jetter and other coolant choices available

Multi-Lock Milling Chuck Overview

(PDF - 1.09 MB)

Here's a list of our fast moving stock available to be delivered the next working day. Every week, we receive shipments from our factory in Japan therefore, if you can't find what you're looking for then please do not hesitate to contact us for an estimated delivery date.

Part Number Code Shank LENGTH 'L' Capacity 'D' NUT/NOSE DIA. 'C' Enquire
BT30-C20-65 BT30 C20 65 2.000 - 20.00 52 Enquire
BT30-C20-75 BT30 C20 75 2.000 - 20.00 52 Enquire
BT50-C20-105 BT50 C20 105 2.000 - 20.00 52 Enquire
BT50-C20-135 BT50 C20 135 2.000 - 20.00 52 Enquire
BT50-C25-105 BT50 C25 105 3.000 - 25.00 60 Enquire
BT50-C32-105 BT50 C32 105 3.000 - 32.00 69 Enquire
BT50-C32-135 BT50 C32 135 3.000 - 32.00 69 Enquire
BT50-C32-165
Less than 10 in stock!		 BT50 C32 165 3.000 - 32.00 69 Enquire
BT50-C32-90 BT50 C32 90 3.000 - 32.00 69 Enquire
BT50-C42-105
Less than 10 in stock!		 BT50 C42 105 3.000 - 42.00 86 Enquire
HSK63A-C32-110G
Less than 10 in stock!		 HSK63A C32 110G 3.000 - 32.00 68 Enquire
HSK63A-CZF20-110 HSK63A CZF20 110 2.000 - 20.00 51.5 Enquire
HSK63A-C32-130G
Less than 10 in stock!		 HSK63A C32 130G 3.000 - 32.00 68 Enquire
HSK63A-CZF25-110 HSK63A CZF25 110 3.000 - 25.00 59.5 Enquire
IT50-C20-105 IT50 C20 105 2.000 - 20.00 52 Enquire
IT50-C20-165 IT50 C20 165 2.000 - 20.00 52 Enquire
IT50-C25-105 IT50 C25 105 3.000 - 25.00 60 Enquire
IT50-C32-105 IT50 C32 105 3.000 - 32.00 69 Enquire
IT50-C32-135 IT50 C32 135 3.000 - 32.00 69 Enquire
IT50-C32-165 IT50 C32 165 3.000 - 32.00 69 Enquire
IT50-C32-85 IT50 C32 85 3.000 - 32.00 69 Enquire
NBT40-C25-70
Less than 10 in stock!		 NBT40 C25 70 3.000 - 25.00 60 Enquire
NBT40-C32-85 NBT40 C32 85 3.000 - 32.00 69 Enquire
C6-MDC32-130 C6 MDC32 130 3.000 - 32.00 68 Enquire
C6-MDC25-110
Less than 10 in stock!		 C6 MDC25 110 3.000 - 25.00 60 Enquire
HSK100A-C20-115 HSK100A C20 115 2.000 - 20.00 52 Enquire
HSK100A-C20-115G HSK100A C20 115G 2.000 - 20.00 48 Enquire
NBT50-C20-105 NBT50 C20 105 2.000 - 20.00 52 Enquire
NBT50-C32-105 NBT50 C32 105 3.000 - 32.00 69 Enquire
NBT50-C32-200
Less than 10 in stock!		 NBT50 C32 200 3.000 - 32.00 69 Enquire
BT40-C20-120 BT40 C20 120 2.000 - 20.00 52 Enquire
BT40-C20-70 BT40 C20 70 2.000 - 20.00 52 Enquire
BT40-C20-90 BT40 C20 90 2.000 - 20.00 52 Enquire
BT40-C25-70 BT40 C25 70 3.000 - 25.00 60 Enquire
BT40-C25-90 BT40 C25 90 3.000 - 25.00 60 Enquire
BT40-C32-105 BT40 C32 105 3.000 - 32.00 69 Enquire
BT40-C32-120 BT40 C32 120 3.000 - 32.00 69 Enquire
BT40-C32-85 BT40 C32 85 3.000 - 32.00 69 Enquire
HSK100A-C20-135
Less than 10 in stock!		 HSK100A C20 135 2.000 - 20.00 52 Enquire
HSK100A-C32-115 HSK100A C32 115 3.000 - 32.00 69 Enquire
HSK100A-C32-135
Less than 10 in stock!		 HSK100A C32 135 3.000 - 32.00 69 Enquire
HSK100A-C32-135G
Less than 10 in stock!		 HSK100A C32 135G 3.000 - 32.00 68 Enquire
HSK100A-CZF25-115 HSK100A CZF25 115 3.000 - 25.00 59.5 Enquire
IT40-C20-120 IT40 C20 120 2.000 - 20.00 52 Enquire
IT40-C20-80 IT40 C20 80 2.000 - 20.00 52 Enquire
IT40-C20-90 IT40 C20 90 2.000 - 20.00 52 Enquire
IT40-C25-85 IT40 C25 85 3.000 - 25.00 60 Enquire
IT40-C32-105 IT40 C32 105 3.000 - 32.00 64 Enquire
IT40-C32-120 IT40 C32 120 3.000 - 32.00 64 Enquire
IT40-C32-95 IT40 C32 95 3.000 - 32.00 64 Enquire
HSK63A-C20-110 HSK63A C20 110 2.000 - 20.00 52 Enquire
HSK63A-C20-110G HSK63A C20 110G 2.000 - 20.00 48 Enquire
HSK63A-C20-85G HSK63A C20 85G 2.000 - 20.00 48 Enquire
HSK63A-C20-95 HSK63A C20 95 2.000 - 20.00 52 Enquire
HSK63A-C20-95G HSK63A C20 95G 2.000 - 20.00 48 Enquire
HSK63A-C25-90 HSK63A C25 90 3.000 - 25.00 60 Enquire
HSK63A-C25-90G HSK63A C25 90G 3.000 - 25.00 55 Enquire
HSK63A-C32-110 HSK63A C32 110 3.000 - 32.00 69 Enquire
IT40X-C20-80G IT40X C20 80G 2.000 - 20.00 48 Enquire
IT40X-C20-90G
Less than 10 in stock!		 IT40X C20 90G 2.000 - 20.00 48 Enquire
IT40X-C32-95G
Less than 10 in stock!		 IT40X C32 95G 3.000 - 32.00 68 Enquire
NBT30-C20-75G
Less than 10 in stock!		 NBT30 C20 75G 2.000 - 20.00 48 Enquire
NBT40-C20-90G NBT40 C20 90G 2.000 - 20.00 48 Enquire
NBT40-C20-70 NBT40 C20 70 2.000 - 20.00 52 Enquire

Nikken NC Tooling Solutions Catalogue

(PDF - 29.3 MB)

Discover more about the Multi lock milling chuck
