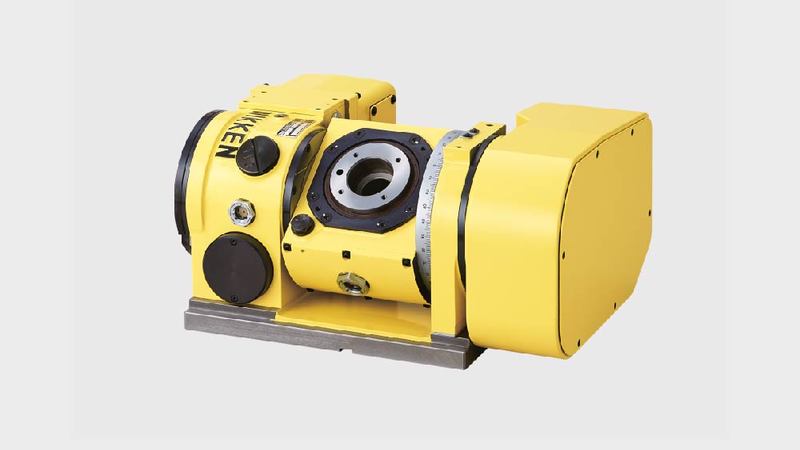

The NIKKEN 5AX-100 is our smallest tilting CNC Rotary Table for compact machines.

With a body width of 466mm and weighing just 84kg, the 5AX-100 is the smallest and lightest in NIKKEN history. Allowing more machining space than ever and a tilting axis of 410Nm with air-hydraulic as standard, the 5AX-100 is a small but powerful solution for your compact machining centre.

The 5AX-100 is also compatible with an extensive range of attachments such as jig plates, scroll chucks and centre sockets, which are a great solution to manufacturing high-precision electronic devices such as smartphones and automotive parts etc.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

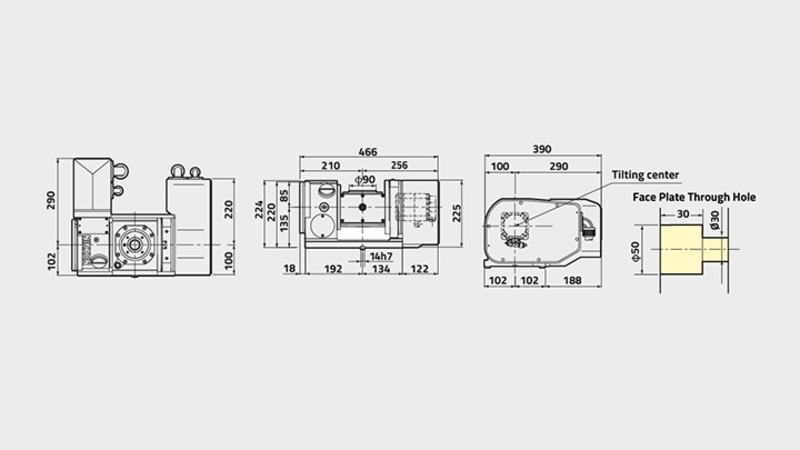

5AX-100 5th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

	5AX-100
Face Plate Diameter[Ømm]	90
Table Range/Type	COMPACT
Diameter of Spindle Hole [Ømm H7]	50
Number of Spindles x Pitch [mm]	1
Centre Height (90°) [mm]	135
Table Height in Horizontal Position (0°) [mm]	190
Width of T Slot [mm]	8H7 Pin
AXIS	Rotary	Tilting (0°-105°)
Clamping System	AIR	AIR (HYD BOOST)
Clamping Torque [Nm]	205	410
Table Inertia at Motor Shaft [Kg m² x 10³]	0.09	0.12
Servo Motor [min¹]	αiF1·2000	αiF2·2000
Min. Increment [Degrees]	0.001	0.001
Rotation Speed [min¹]	44.4	22.2
Total Reduction Ratio	1/45	1/90
Indexing Accuracy [sec]	±30	60
Indexing Accuracy Ultra Precision [sec]	-	-
Net Weight [Kg]	84
Max. Work Load on Table 0° to 30° [Kg]	40
Max. Work Load on Table 30° to 90° [Kg]	20
Max. Thrust Load at Table Centre Tilting Angle = 0° [N]	5300
Max. Thrust Load 'F' @ 'Lmm' from Table Centre Tilting Angle = 0° [N]	F3820 @ L=45
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate Tilting Angle = 90° [N]	F2945 @ L=0 F1045 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) Tilting Angle = 90° [FxL Nm]	98
Max. Work Inertia [Kg m²]	0.03
Driving Torque [Nm]	18
